Description

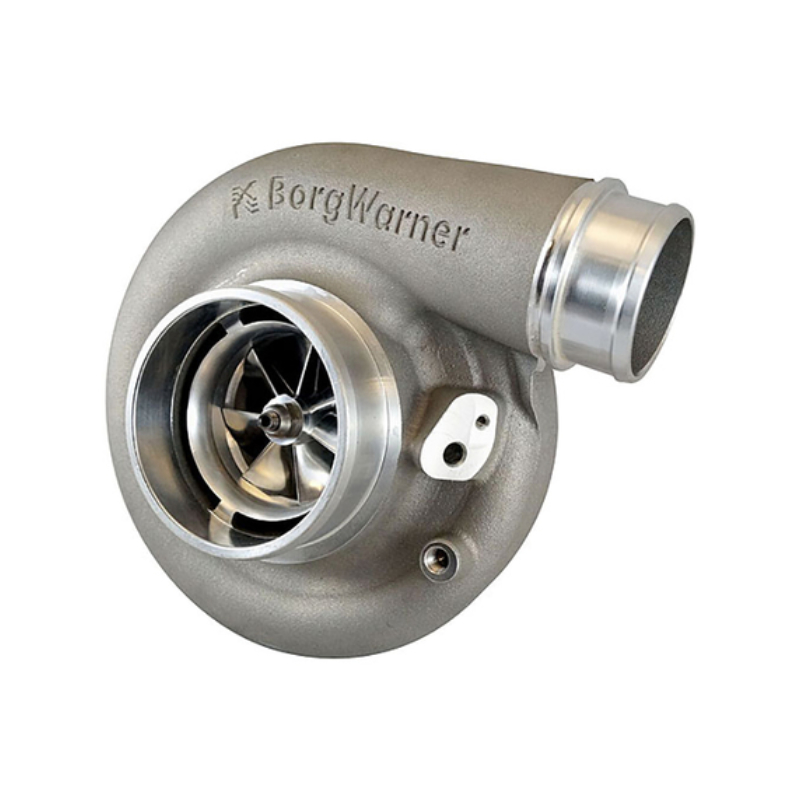

This proven design is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and speed sensor port. It is paired with traditional Airwerks 80mm Inconel Turbine and Flexible Housing options. The 64.47mm S300SX-E Turbo has smaller overall dimensions than the EFR8374 and higher airflow rates, which make this an excellent match for high-boost and high-power 64.47mm drag racing applications. Thermals are taken care of by an Oil-Cooled Journal Bearing only.

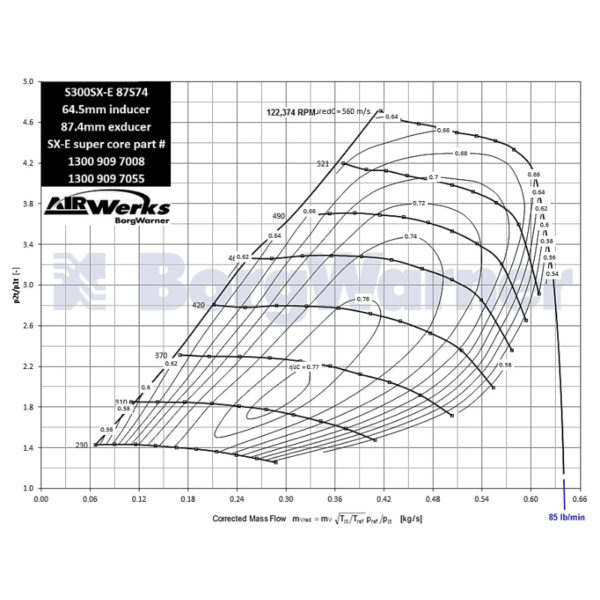

Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 87.37mm
Compressor Wheel Inducer: 64.47mm
Max Flow Rate: 85 lb/min
Max Recommended Turbo Shaft Speed: 122374 RPM (560 m/s)
