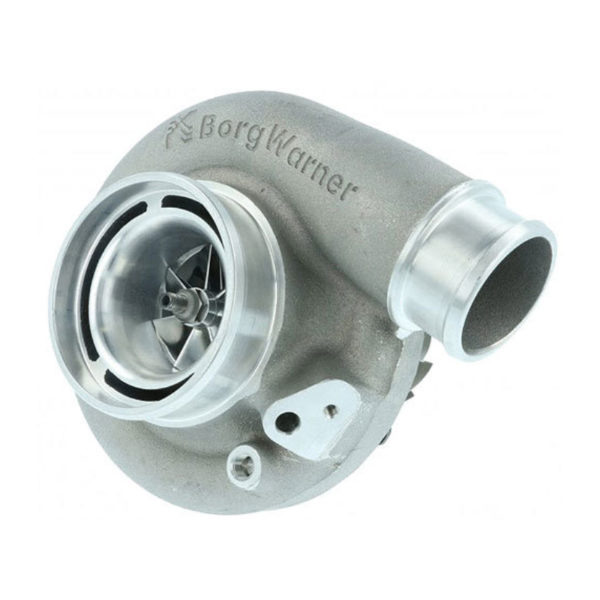

S252SX-E

$692.85 – $850.10

BW utilizes their 70mm Inconel turbine wheel with 52.2mm inducer / 70mm exducer FMW compressor in a purpose built S200 SXE compressor housing. Smaller overall packaging than the EFR7670 with identical airflow rates make this an excellent match for the 400-600hp range (up to 2.6L) or as twin turbos in 700-1100hp applications. Oil-Cooled Journal Bearing only.

Category:

Product Description

Utilizing the latest generation aerodynamics, billet EFR compressor wheels, and uprated 360 degree thrust assemblies, BorgWarner?s all new ?SX-Enhanced? turbos redefine performance, durability and value for modern turbochargers.

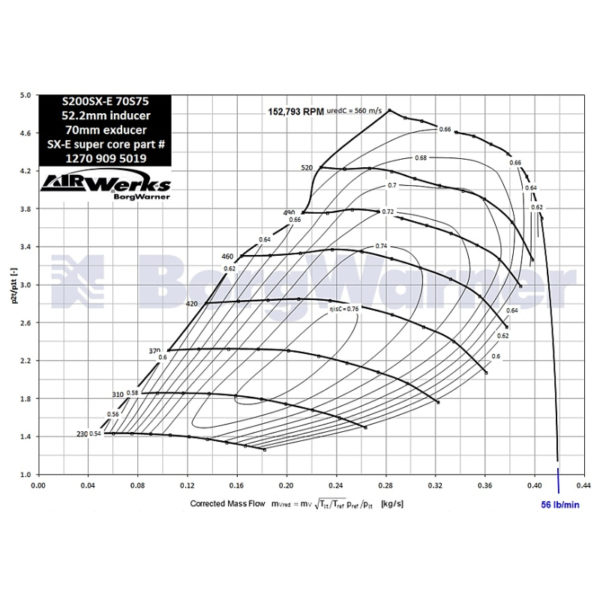

Compressor Specifications
Compressor Wheel Exducer: 70mm
Compressor Wheel Inducer: 52.17mm
Max Flow Rate: 57 lbs/min
Max Recommended Turbo Speed: 560 m/s
Compressor Housing Connections:
Inlet: 3.5? Hose Coupler
Outlet: 2.0? Hose Coupler
Turbine Specifications
Turbine Wheel Exducer: 61.43mm
Turbine Wheel Inducer: 70mm

Additional information

Weight N/A
Dimensions N/A
Turbine Housing

None, T4 .83 A/R Twin Scroll, T4 .1.00 A/R Twin Scroll, T4 1.09 A/R Twin Scroll, T4 1.15 A/R Twin Scroll, T4 1.22 A/R Twin Scroll, T4 1.27 A/R Twin Scroll

Brand

Borgwarner

Borgwarner Turbos EFR & Airwerks
