Product Description

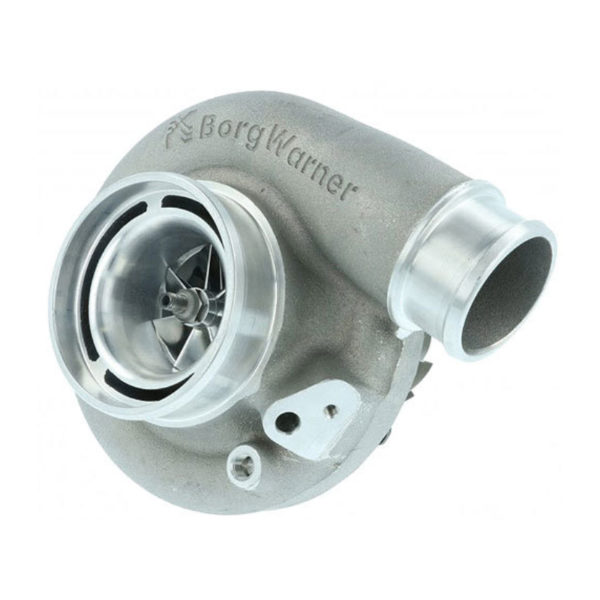

BW utilizes their 70mm Inconel turbine wheel with 57.2mm inducer / 76mm exducer FMW compressor in a purpose built S200 SXE compressor housing. Smaller overall packaging than the EFR7670 with identical airflow rates make this an excellent match for the 400-650hp range (up to 2.6L) or as twin turbos in 700-1100hp applications. Oil-Cooled Journal Bearing only.

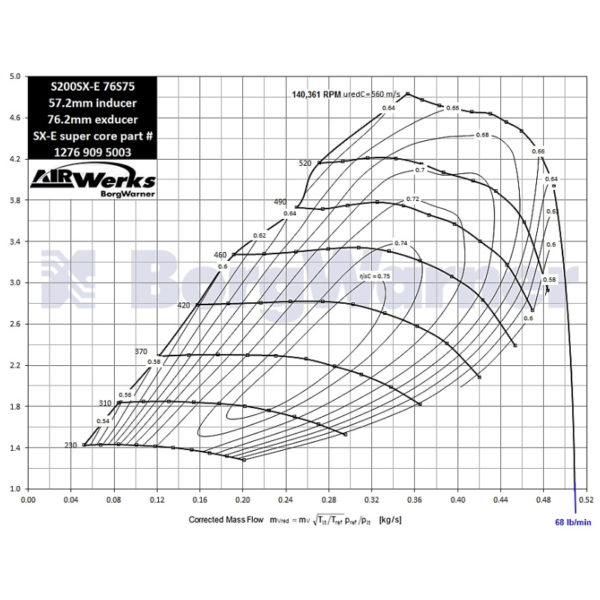

Compressor Specifications
Compressor Wheel Exducer: 76mm
Compressor Wheel Inducer: 57.15mm
Max Flow Rate: 64 lbs/min
Max Recommended Turbo Speed: 560 m/s
Compressor Housing Connections:
Inlet: 3.5? Hose Coupler
Outlet: 2.0? Hose Coupler
Turbine Specifications
Turbine Wheel Exducer: 61.43mm
Turbine Wheel Inducer: 70mm
