Product Description

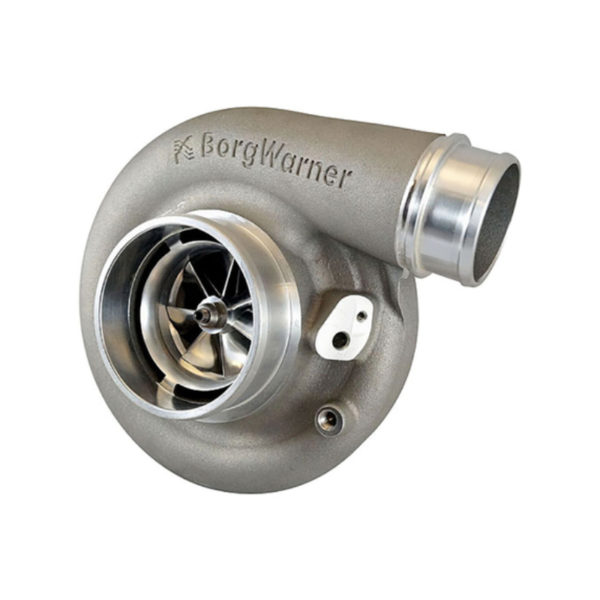

BW engineers started with their 91mm EFR9180 compressor wheel design, trimmed to 72% and 66mm for an airflow rate of 90lb/min. This all new wheel is packaged in a purpose built SXE compressor housing with ported-shroud inlet and speed sensor port. It is paired with a traditional Airwerks 80mm Inconel turbine and flexible housing options. Smaller overall dimensions than the EFR9180 and higher airflow rates make this an excellent match for high-boost and high-power applications. Oil-Cooled Journal Bearing only.

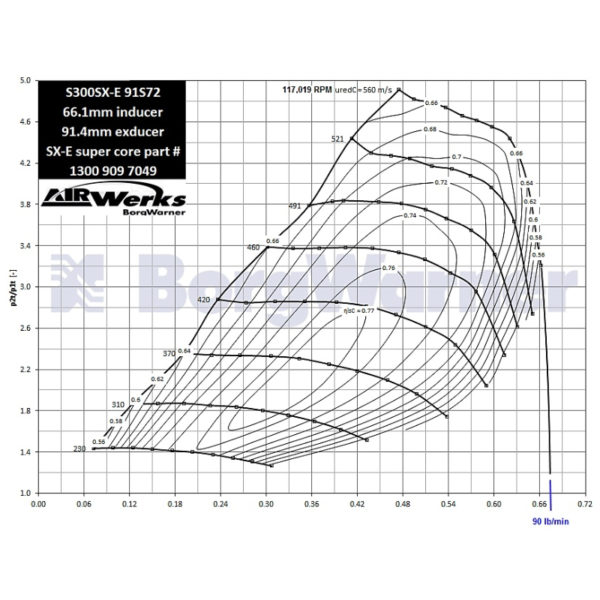

Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 91.4mm
Compressor Wheel Inducer: 66.11mm
Max Flow Rate: 90 lb/min
Compressor Housing Connections:
Inlet: 4.0? Hose Coupler
Outlet: 2.5? Hose Coupler
Turbine Specifications
Turbine Type: Inconel S300SX Turbine Wheel
Turbine Wheel OD: 80mm
Housing Material: D5S sandcast
