Description

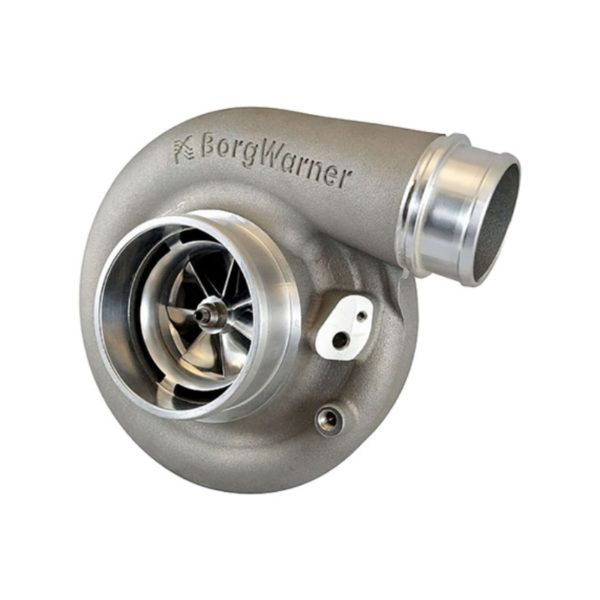

BW engineers started with their 91S compressor wheel blade shape from the EFR9180, but trimmed to 75% for an increased airflow rate of 98lb/min. This all new wheel is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and optional speed sensor port. A traditional Airwerks 80mm Inconel turbine and flexible housing options maintain consistency with existing installations. Smaller overall dimensions than the EFR9180 and higher airflow rates make this an excellent match for high-boost and high-power applications. Oil-Cooled Journal Bearing only.

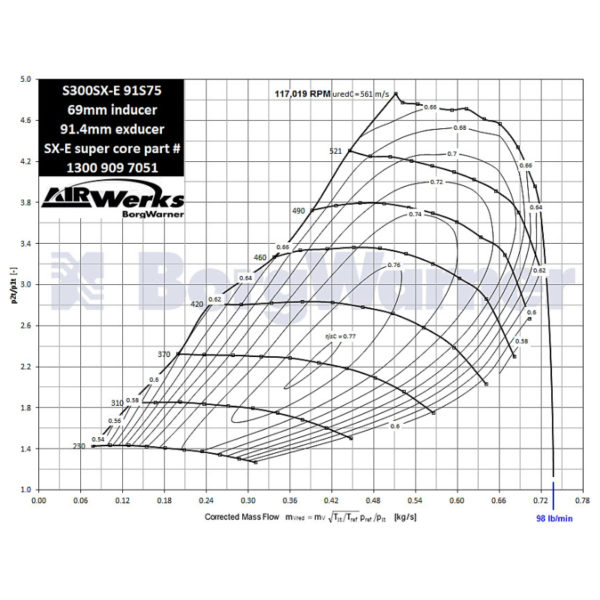

Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 91.44mm
Compressor Wheel Inducer: 69.00mm
Max Flow Rate: 98 lb/min
Max Recommended Turbo Shaft Speed: 117019 RPM
Compressor Housing Connections:
Inlet: 4.0? Hose Coupler
Outlet: 2.5? Hose Coupler
Turbine Specifications
Turbine Type: Inconel S300SX Turbine Wheel
Turbine Wheel OD: 80mm
Housing Material: D5S sandcast
