Ideal for drag race applications limited to 62.99mm inducer and twin turbo V8

SKU: N/A Category:

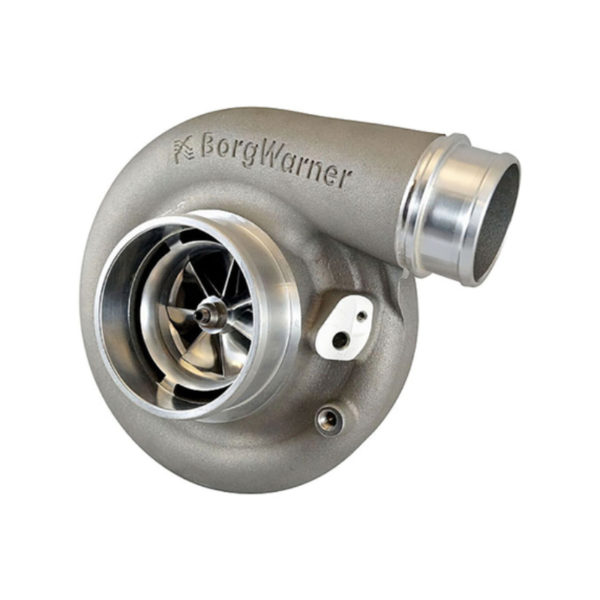

The all new ?SX-Enhanced? S300 SX-E 8780 turbos redefine performance and value for modern turbochargers. Utilizing the latest generation EFR compressor aerodynamics with uprated 360 degree thrust assemblies, this proven design is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and speed sensor port. It is paired with traditional Airwerks 80mm Inconel Turbine Wheel and Flexible Housing options. The 62.99mm S300SX-E Turbo has smaller overall dimensions than the EFR8374 and higher airflow rates, which make this an excellent match for high-boost and high-power 63mm drag racing applications. Bearing housing is Oil-Cooled Journal Bearing configuration.

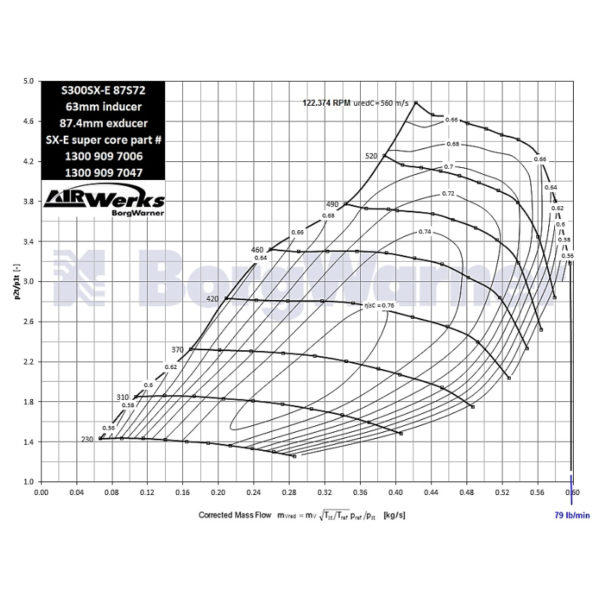

Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 87.37mm
Compressor Wheel Inducer: 62.99mm
Max Flow Rate: 78.5 lb/min
Max Recommended Turbo Shaft Speed: 122374 RPM
Compressor Housing Connections:
Inlet: 4.0? Hose Coupler
Outlet: 2.5? Hose Coupler

Additional information

Weight N/A
Dimensions N/A
Turbine Wheel

76/68mm Turbine, 80/74mm Turbine

Turbine Housing

None, T4 .88 A/R Open Scroll, T4 .91 A/R Twin Scroll, T4 1.00 A/R Twin Scroll



Borgwarner Turbos EFR & Airwerks
