Description

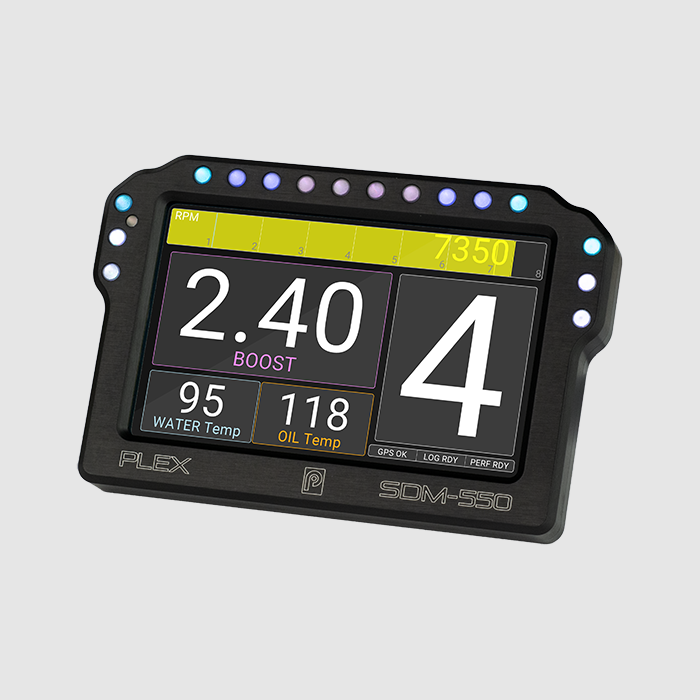

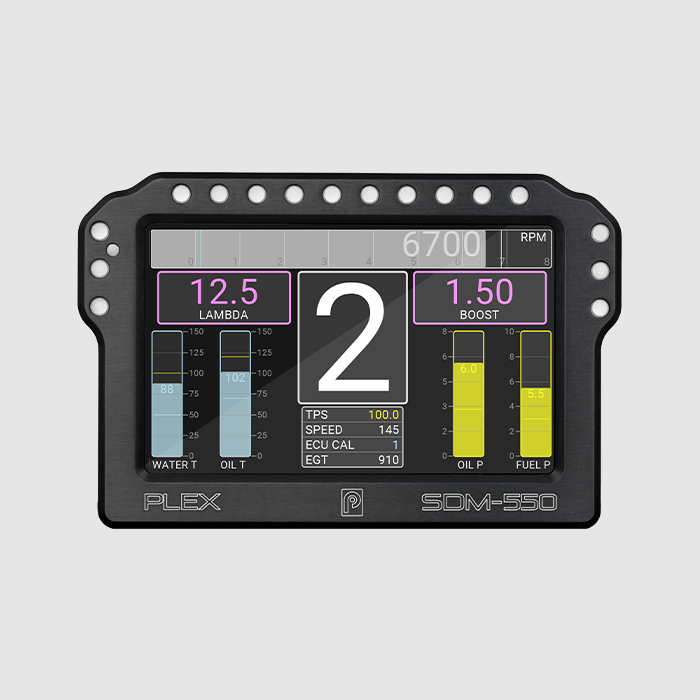

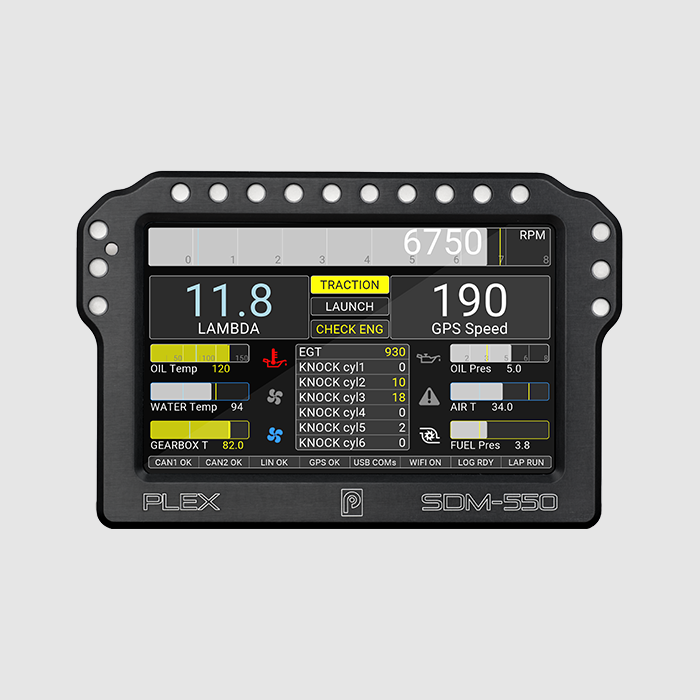

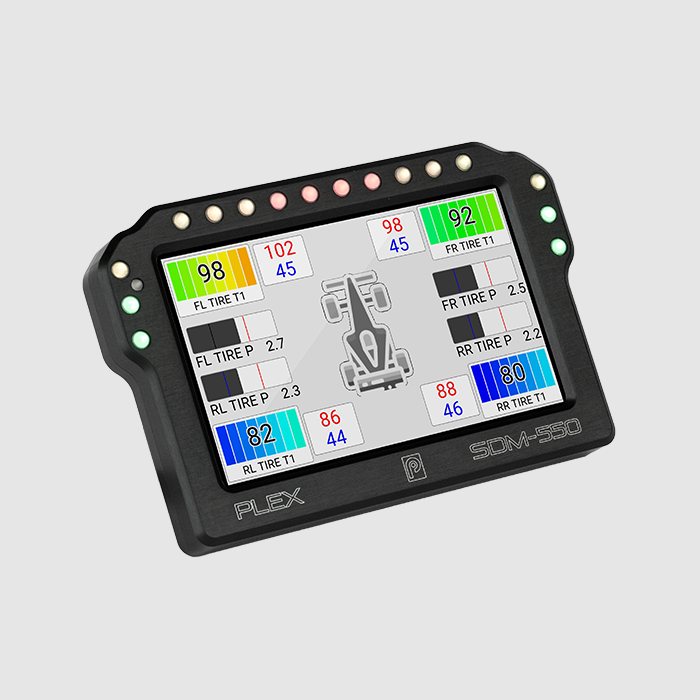

Plex Tuning SDM 550 Display Logger, A 5’’ All-in-One Pro-level Dash Display Logger with Built-in 25Hz Multi-GNSS and 100Hz IMU modules for precise Lap Timing, Performance Measurements and Vehicle Dynamics Analysis. A powerful & robust display logger for demanding customers and projects.
| CAN Bus |
2x |
| RS-232 |
1x (shared with CAN) |
| Lin Bus |
1x |
| USB |
1 (for configuration & data transfer) |
| WiFi |
Yes – for configuration |
| Inputs |
4x Multi-purpose 0-5V (Analog/digital/frequency)
4x Multi-purpose 0-16V (Analog/digital/frequency) |
| Outputs |
2x AUX High Side, lim 3A |
| Switch/Button Inputs |
2 |
| LEDs |
16 RGB |
| Device/Sensor Voltage Monitor |
+12V supply/+5V sensor supply |
| Device Temperature Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Accelerometer/IMU |
100HZ /6-axis (built-in) |
| GPS |
25Hz confurrent Multi-GNSS (built-in) |
| Memory |
USB Flash |
| Max. Log Rate |
100Hz |
| Engine Log |
Yes |
| Alarms Log |
Yes |
| Lap Times Log |
Yes |
| Performance Times Log |
Yes |
| Lap Times |
yes |
| Acceleration Performance |
yes |
| Engine Power & Torque |
yes |
| Alarms Log |
yes |
| Math Channels |
16 |
