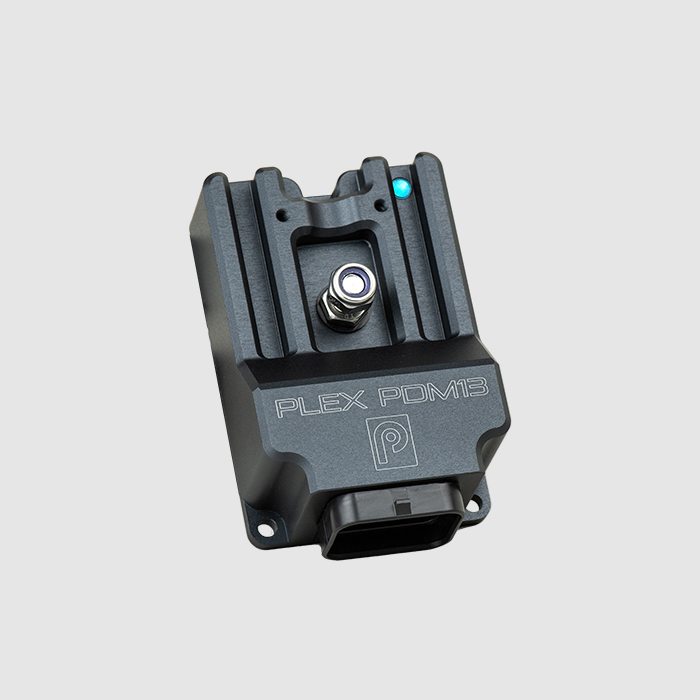

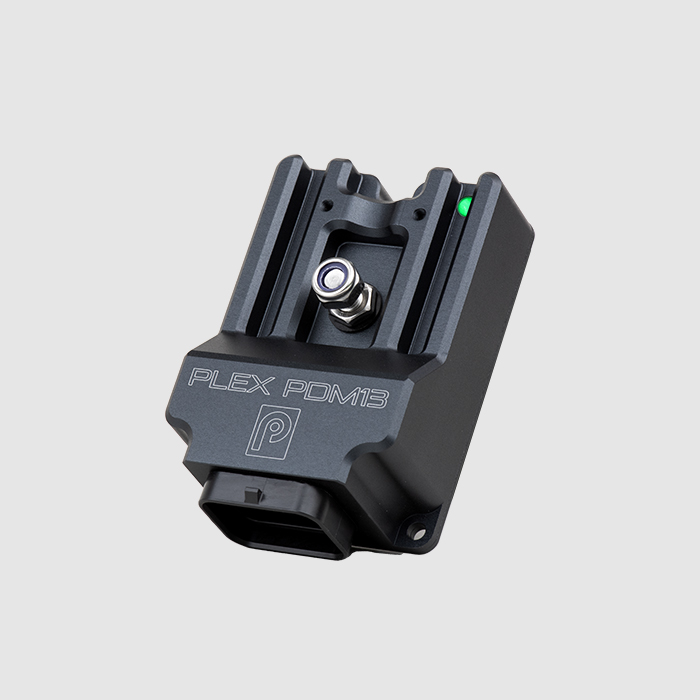

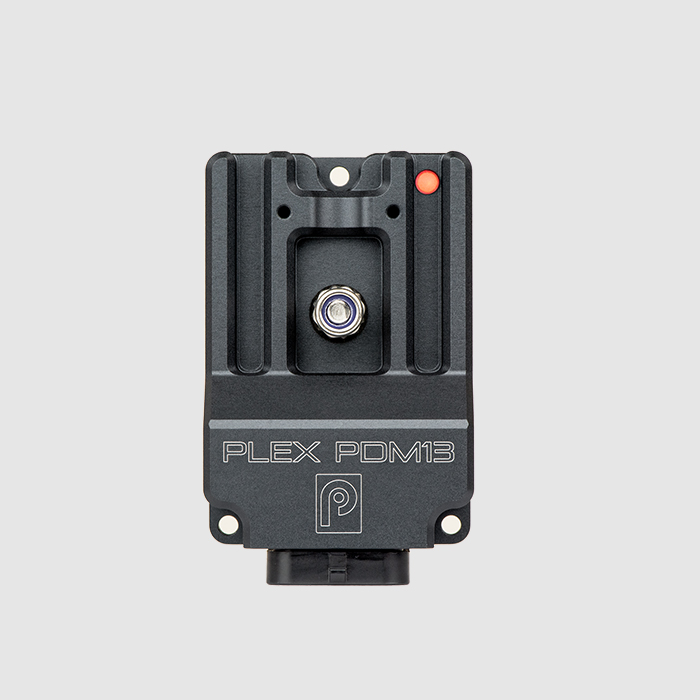

Plex Tuning – PDM13

$1,165.00

The PLEX PDM-13 is a 13-channel power distribution module built to replace relays, fuses, and circuit breakers with precise, solid-state control — simplifying your wiring architecture and giving you full command over every output in the system.

With 100A total continuous current capacity, per-output protection strategies, configurable fuse and inrush behaviour, and onboard logic processing, the PDM-13 handles everything from a single motorcycle build to a complex distributed installation. Configuration is handled through PLEX Device Manager — the same intuitive, fast software platform used across the entire PLEX range.

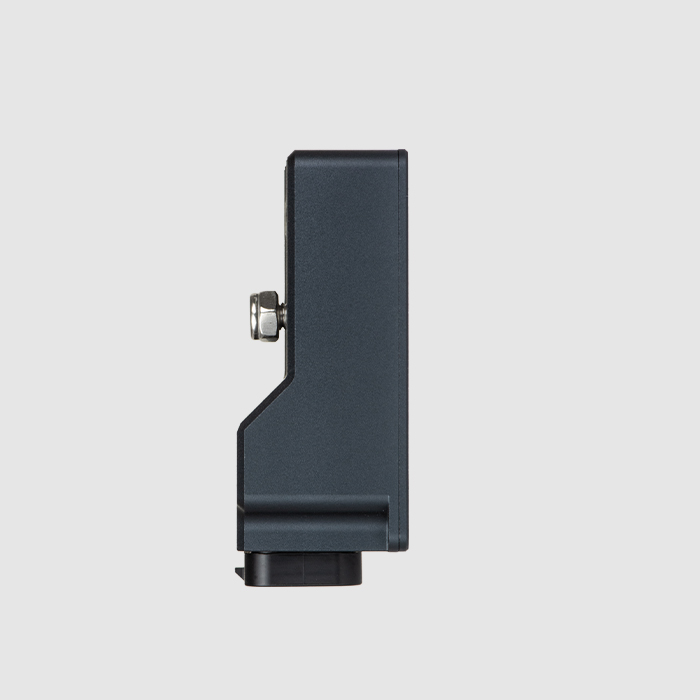

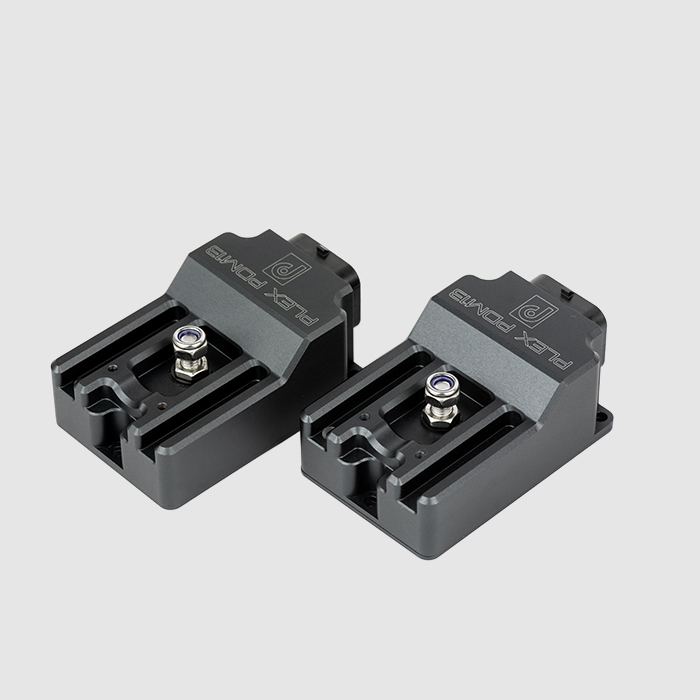

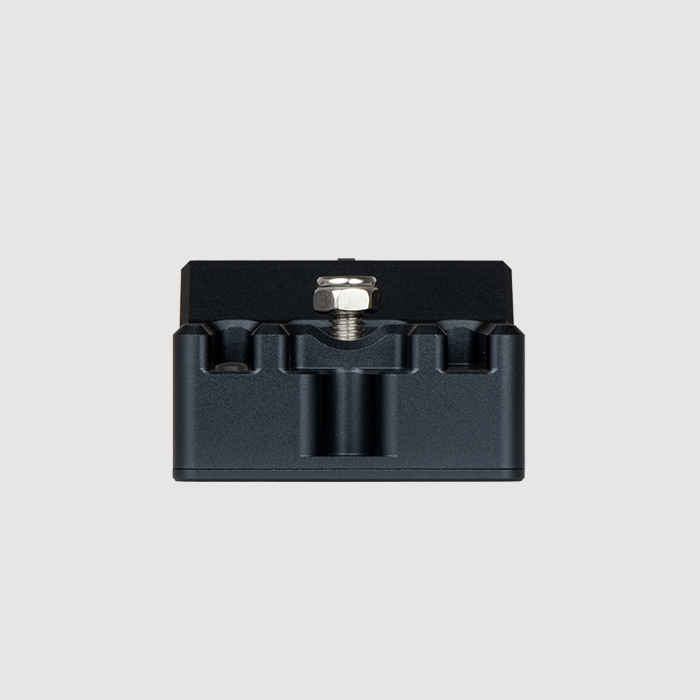

215g. IP67. CNC-machined aluminium. Built to go wherever the application takes it.

SKU: plex-pdm-13 Category: Brand:

Description

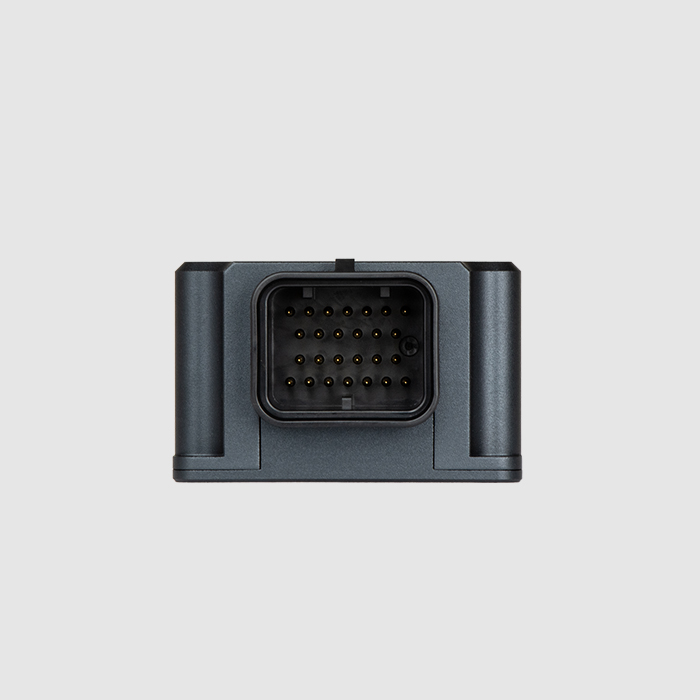

CONFIGURABLE CAN BUS & I/Os

Custom CAN Bus configuration with CAN-FD support (250 kbit–5 Mbit) and flexible analog, digital, and frequency inputs tailored to your system architecture.

SOLID STATE POWER DISTRIBUTION

Replaces relays, fuses, and circuit breakers with intelligent electronic control — improving reliability, response time, and system robustness while eliminating mechanical failure points.

13 CONFIGURABLE HS OUTPUTS

Each output carries individually configurable current limits, fuse parameters, warning thresholds, and reset strategies. Four outputs rated at 7A, eight at 15A with output grouping up to 60A continuous, and one at 45A.

INRUSH CURRENT MANAGEMENT

Per-output configurable inrush current and timing to safely handle high-load devices at startup without nuisance trips.

PWM & SOFT START

PWM capability on three outputs with configurable frequency up to 200 Hz, plus soft-start functionality for smooth, controlled power delivery to motors and actuators.

OUTPUTS

7A High-Side x4

  • 14A inrush per output)
15A High-Side x6

  • Output grouping supported
  • 60A max combined cont. current
  • 30A inrush per output
  • 120A max combined inrush
15A High-Side with PWM x2

  • Configurable frequences: 200/100/50/40/25/20/10 Hz
  • Soft-start capability
  • 30A inrush per output
45A High-Side with PMW x1

  • Configurable frequencies: 200/100/50/40/25/20/10 Hz
  • Soft-start capability
  • 90A inrush

INPUTS

Analog/Digital/Frequency 0-5V (with selectable 3K3 pull-up) x2
Analog/Digital/Frequency 0-16V x1
Analog/Digital 0-16V x1

Additional information

Weight 1 lbs
Dimensions 8 × 6 × 3 in
