Gen1 Garrett GTX2863R


Garrett GTX2863, very popular responsive turbo in 4 cylinder applications. Flow potential of 425hp this turbo includes the T25 turbine housing with a .64A/R

SKU: GRT-TBO-968 Category:

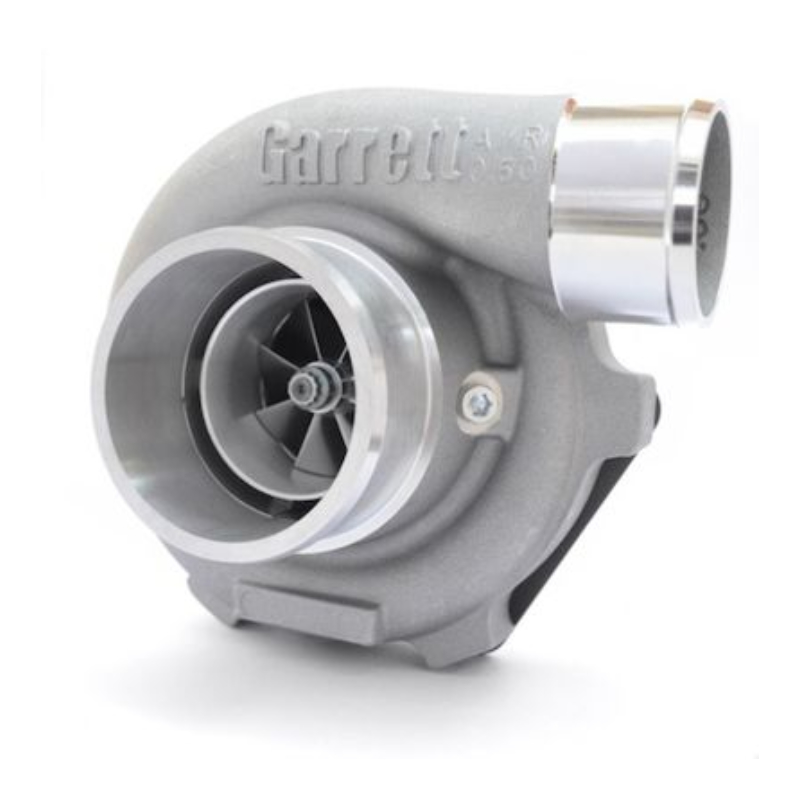

New GTX2863R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 10-Blade technology. 425HP potential flow.

The GTX2863R external dimensions is the same as a GT2860RS. As a result, no changes in the engine bay is required to upgrade from GT2860RS to GTX2863R!

Compressor Wheel Inducer: 47.1mm
Compressor Wheel Exducer: 63.4mm
Compressor Wheel Trim: 56
Turbine Wheel Inducer: 53.9mm
Turbine Wheel Exducer: 47.0mm
Turbine Wheel Trim: 76
Standard compressor housing is GT28 style with 3″ inlet and 2″ outlet with built & machined anti-surge. Optional compressor housings available: GT28R (2 bolt inlet and 3 bolt outlet); GT2554R Style; or RB Twin Style.

Additional information

Weight 18 lbs
Dimensions 12 × 12 × 12 in
Turbine Housing

T25 .64A/R, T25 .86A/R, T3 Twin Scroll .82A/R, No Turbine Housing
