Gen 1 Garrett GTX3582R

$1,900.00 – $2,389.00

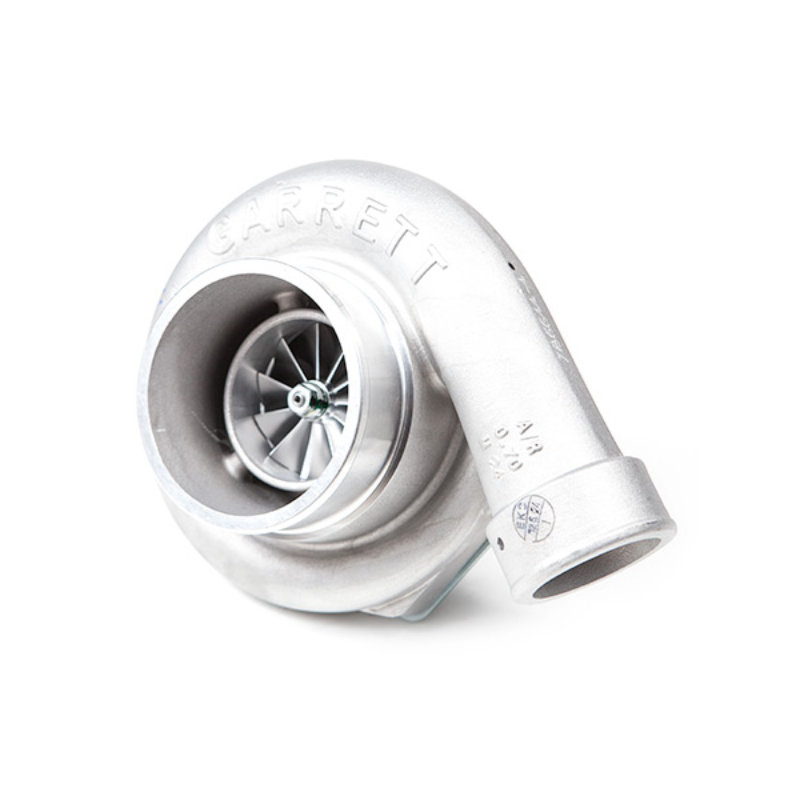

GTX3582R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 750HP potential flow.

SKU: N/A Category:

Description

GTX3582R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 750HP potential flow.

TURBO SPECIFICATIONS:
* Compressor Wheel Inducer: 62.5mm
* Compressor Wheel Exducer: 82.5mm
* Compressor Wheel Trim: 56
* Turbine Wheel Inducer: 68.0mm
* Turbine Wheel Exducer: 62.3mm
* Turbine Wheel Trim: 84
* Standard compressor housing is T04S Frame (similar to GT3582R) with 4″ inlet, 2.5″ outlet, and built-in & machined anti-surge.

Additional information

Weight 18 lbs
Dimensions 16 × 16 × 16 in
Turbine Housing

None, T3 Divided 1.06 A/R, T3 Divided .82 A/R, T4 Divided 1.06 A/R, T4 Open .63 A/R, T4 Open .82 A/R, T4 Open 1.06 A/R, Tial 1.03 A/R, Tial .82 A/R

Brand

Garrett
