Description

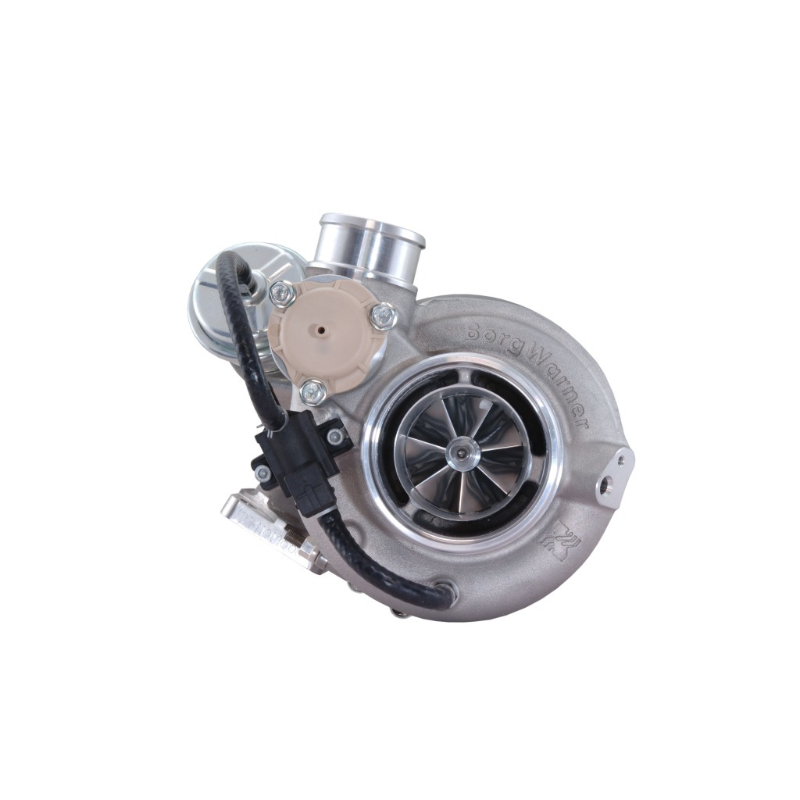

The EFR 7670 is capable of 64lb/min compressor flow – unheard of for this size compressor wheel. The 7670 is an excellent turbocharger for road racing and time attack applications, as well as responsive high power street driven vehicles. The 70mm Gamma-Ti turbine wheel is the optimal match for the 57.2mm inducer / 76mm exducer FMW compressor wheel and is capable of 45+psi boost. This turbo uses the mid-size EFR ported-shroud compressor housing, great for fitment in cramped engine bays. Ideal for use in single turbo applications for the 400-650hp range, or as twin turbo applications 800-1200+hp.
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 76mm
Compressor Wheel Inducer: 57.2mm
Max Flow Rate: 64 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Compressor Housing Connections:
Inlet: 3.5″ Hose Coupler
Outlet: 2.0″ Hose Coupler
Turbine Specifications
Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
Turbine Wheel OD: 70mm
Stainless Steel Investment cast Housing
The EFR 7670 is available in (3) different turbine housing configurations:
0.83 A/R T3 undivided (Internal WG)
0.92 A/R T4 twinscroll (Internal WG)
1.05 A/R T4 twinscroll (external WG)
Turbine outlet: GT-Vband (aka small 3″ vband) ~92mm OD for all EFR turbos
