Product Description

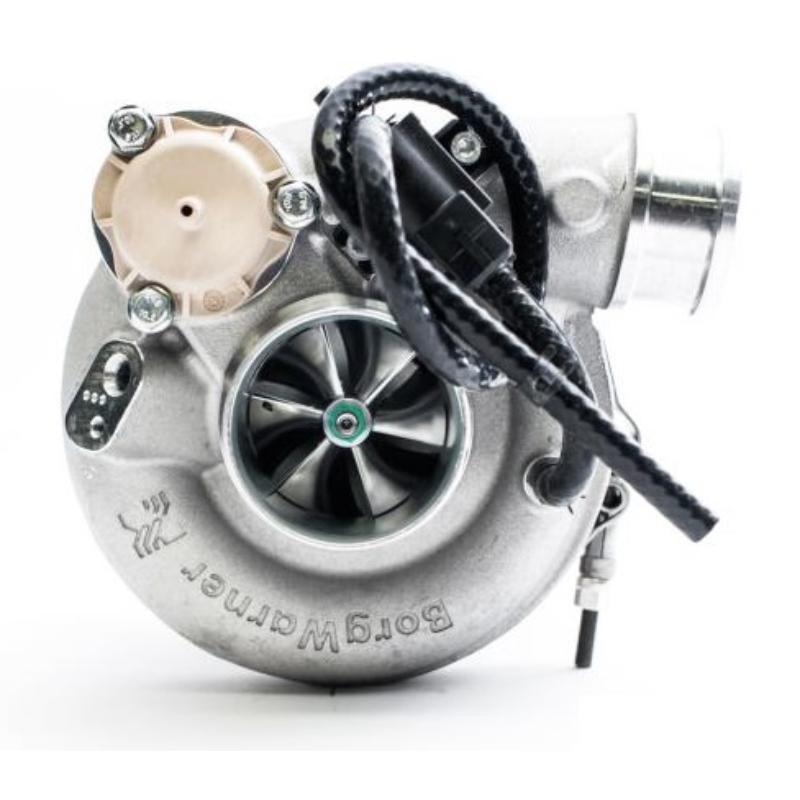

The EFR 7163 71mm OD compressor has a 57mm inducer and there is potential for 550hp – unheard of for this size compressor wheel. The low inertia 63mm Gamma-Ti turbine wheel is the optimal match for the 71mm FMW compressor wheel and is capable of 45+psi boost. This turbo uses the mid-size EFR ported-shroud compressor housing, great for fitment in cramped engine bays. Ideal for use in single turbo applications for the 300-550hp range, or as twin turbo applications 650-1000+hp.

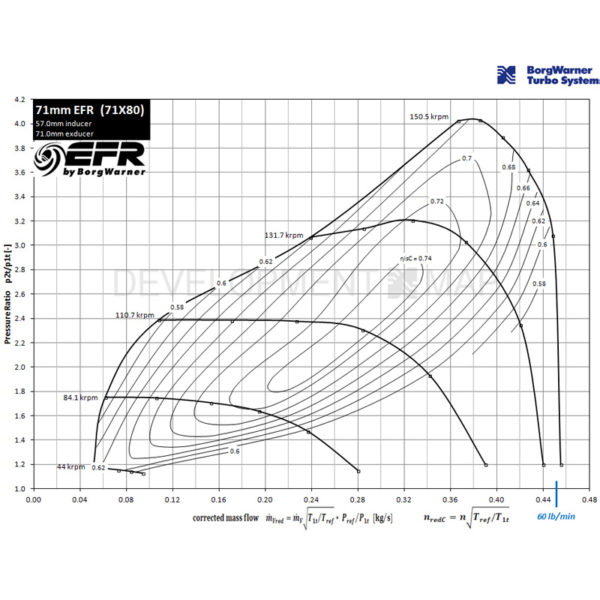

Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 71mm
Compressor Wheel Inducer: 57mm
Compressor Housing: 3″ inlet, 2.0″ hose coupler outlet
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Connections:
Inlet: 3.0″ Hose Coupler
Outlet: 2.0″ Hose Coupler w/ integrated Vband option
Turbine Specifications
Turbine type: Low Inertia Gamma-Ti Turbine Wheel
Turbine Wheel OD: 63mm
Stainless Steel Investment cast Housing
The EFR 7163 is available in (3) different turbine housing configurations:
0.85 A/R T25 undivided (Internal WG)
0.85 A/R V-Band In/Out (Internal WG)
0.80 A/R T4 twinscroll (External WG)
Turbine outlet: GT-Vband (aka small 3″ vband) ~92mm OD for all EFR turbos
