This 1989-2002 Nissan Skyline GT-R fuel rail kit is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69″ internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish.
For thermal insulation, press-fit machined phenolic spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts, as shown.
The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors, otherwise the included O-rings will not be needed.
The rail is compatible with all fuel types including popular alcohol mixtures such as E85.

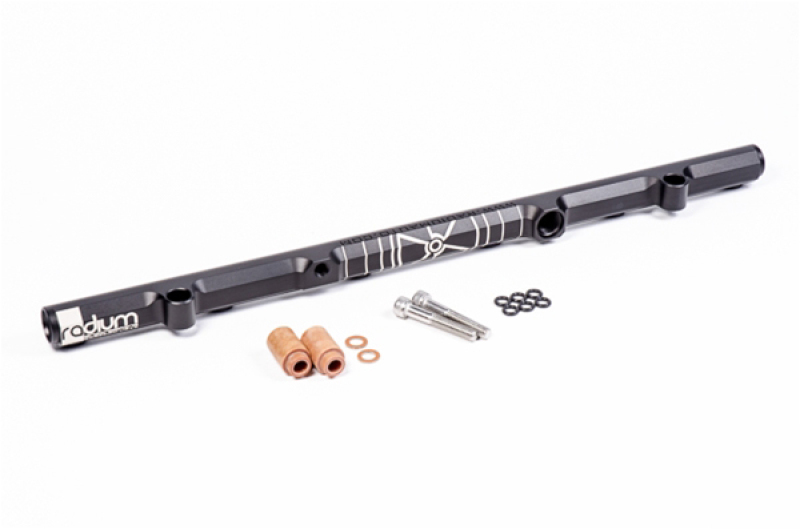

20-0217 FUEL RAIL FOR RB26DETT, INCLUDES:
-Black Anodized Aluminum Fuel Rail
-Insulating Phenolic Spacers (x2)
-Insulating Phenolic Washers (x2)
-Stainless Steel Mounting Bolts (x2)
-Viton O-rings for OEM Injectors (x6)
